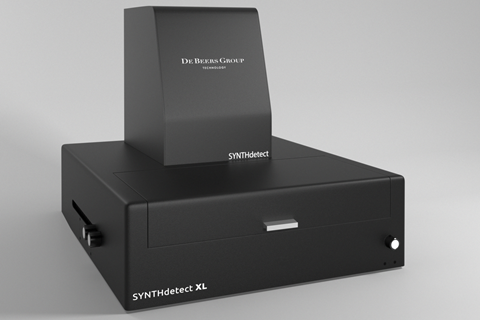

SYNTHdetect XL
De Beers Group Ignite presents the SDXL as the latest in our range of innovations.
The SDXL base can replace the SynthDetect standard base and has the advantage of holding larger pieces of jewellery as well as multiple pieces - up to 85 rings - on its three axis (x,y,z) platform, which measures 210mm x 297mm (A4 size).
Features Include:
- SDXL now provides an opportunity to scan larger necklaces, multiple solitaire rings and multiple bracelets
- Utilising the standard SDXL field of view XL is now capable of scanning an A4 size area (A4 measures 210mm x 297mm)
- Maximum variation in scanning height = 20mm
- Maximum jewellery piece height (platform to focal point) = 30mm
- Manual operations
- Operator interchangeability
- One year warranty
At present, pieces requiring rotation must still use the standard SynthDetect lower module.
Dimensions: 558mm(w) x 685mm(d) x 169mm(h) or 492mm(h) with illumination module fitted.
SDXL Frequently Asked Questions
The FOV is constrained by the limitations of the illumination light source.
A4 size, 210mm × 297mm.
Maximum variation in scanning height = 20mm.
Maximum jewellery piece height (platform to focal point) = 30mm.
85 rings.
No, at present pieces requiring rotation must still use the standard SynthDetect lower module.
This is an operator-based task requiring the removal of only six screws. Without the fixing, it is possible that the connection between the two modules will be compromised, resulting in the illumination not performing.
